Electronic kit for 5V USB C battery-powered lamps without Socket
Electronic kit for 5V USB C battery-powered lamps without Socket
Available in stock
Request a free personalized consultation.
Description
Description

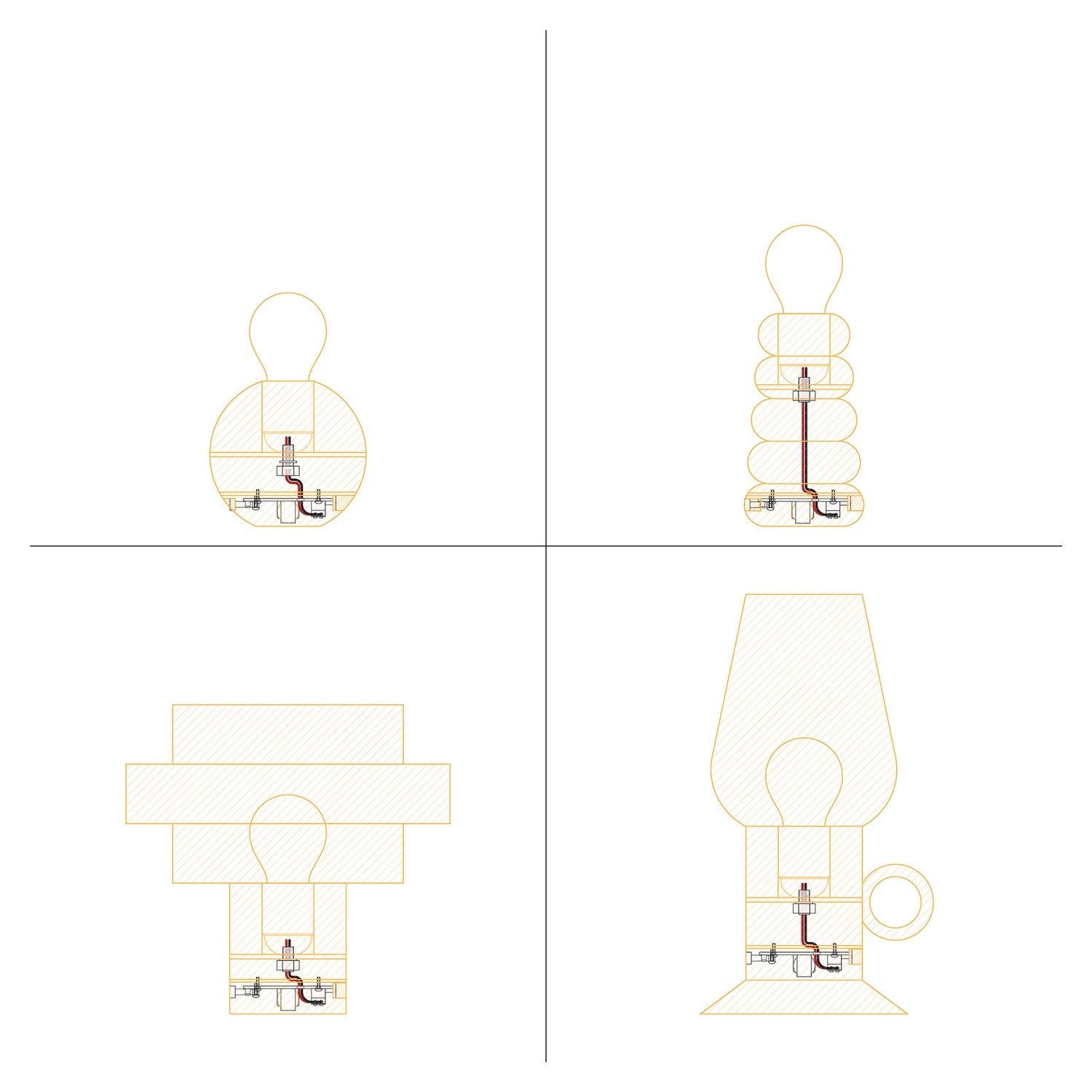

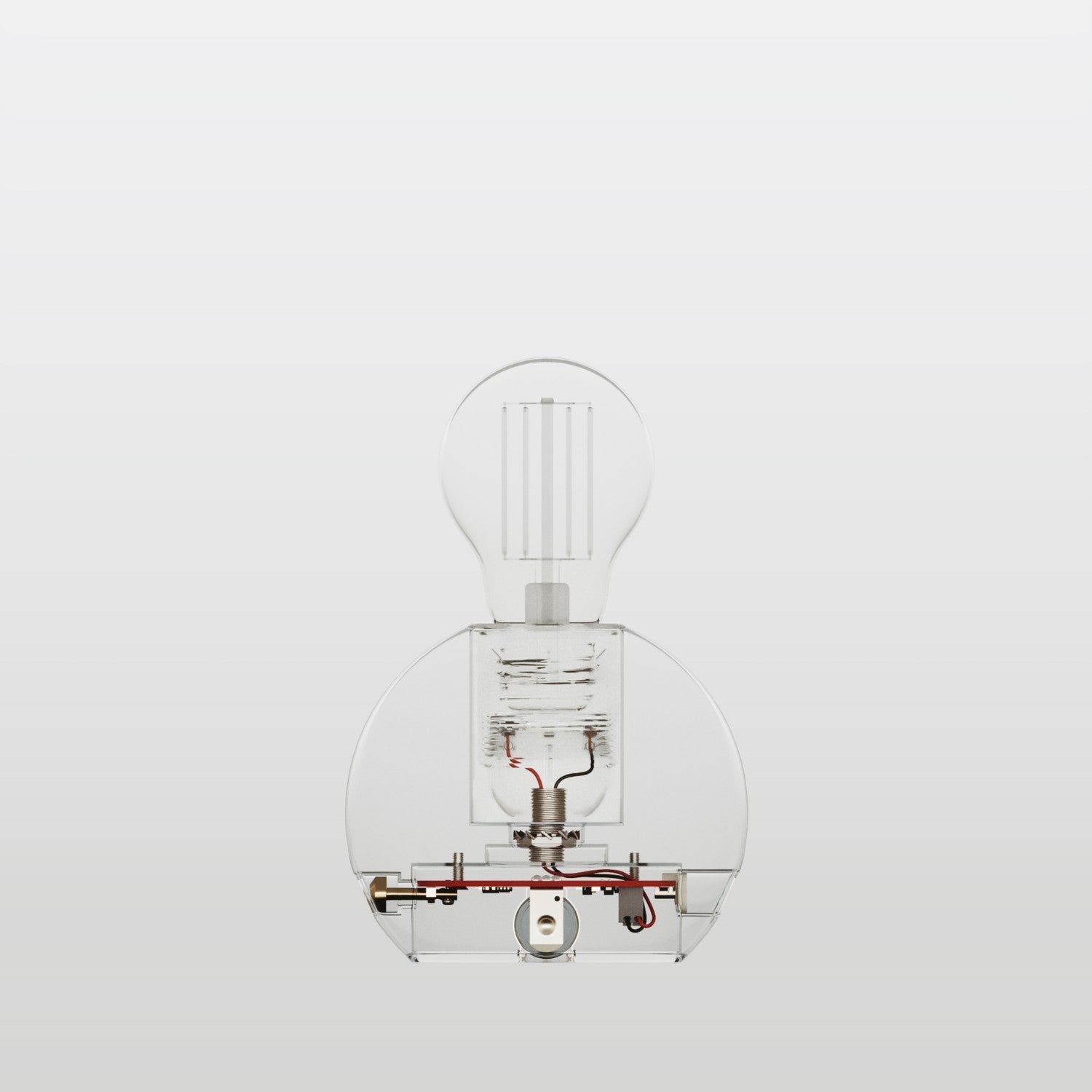

Rechargeable 5V USB C electronic kit designed as a technical base for creating custom portable lamps. It is a solution aimed at makers, designers, and lamp creators who develop custom lamp bodies, prototypes, or 3D printed projects.
The system is based on a round electronic board with a 5V input via USB C and a 5V output to power the light source. This configuration allows for the separation of the electronic part from the light source, offering flexibility in arranging components within the project.
The kit does not include a lamp holder, giving the designer the freedom to choose or integrate the most suitable model based on the type of lamp to be created, materials used, and the final product configuration.
Light control is via a button with an integrated dimmer, offering three intensity levels plus an OFF function. The system is compatible with 5V light sources and is designed for the creation of rechargeable, repairable, and easily maintainable battery-powered lamps.
Assembly does not require soldering or specific tools. The connections are designed for easy assembly with a regular screwdriver, making the kit suitable for both development stages and small series production.
The system is compatible with 18650 format rechargeable Li-ion batteries, which are easily available and replaceable when necessary. The battery is not included.
Technical Specifications:

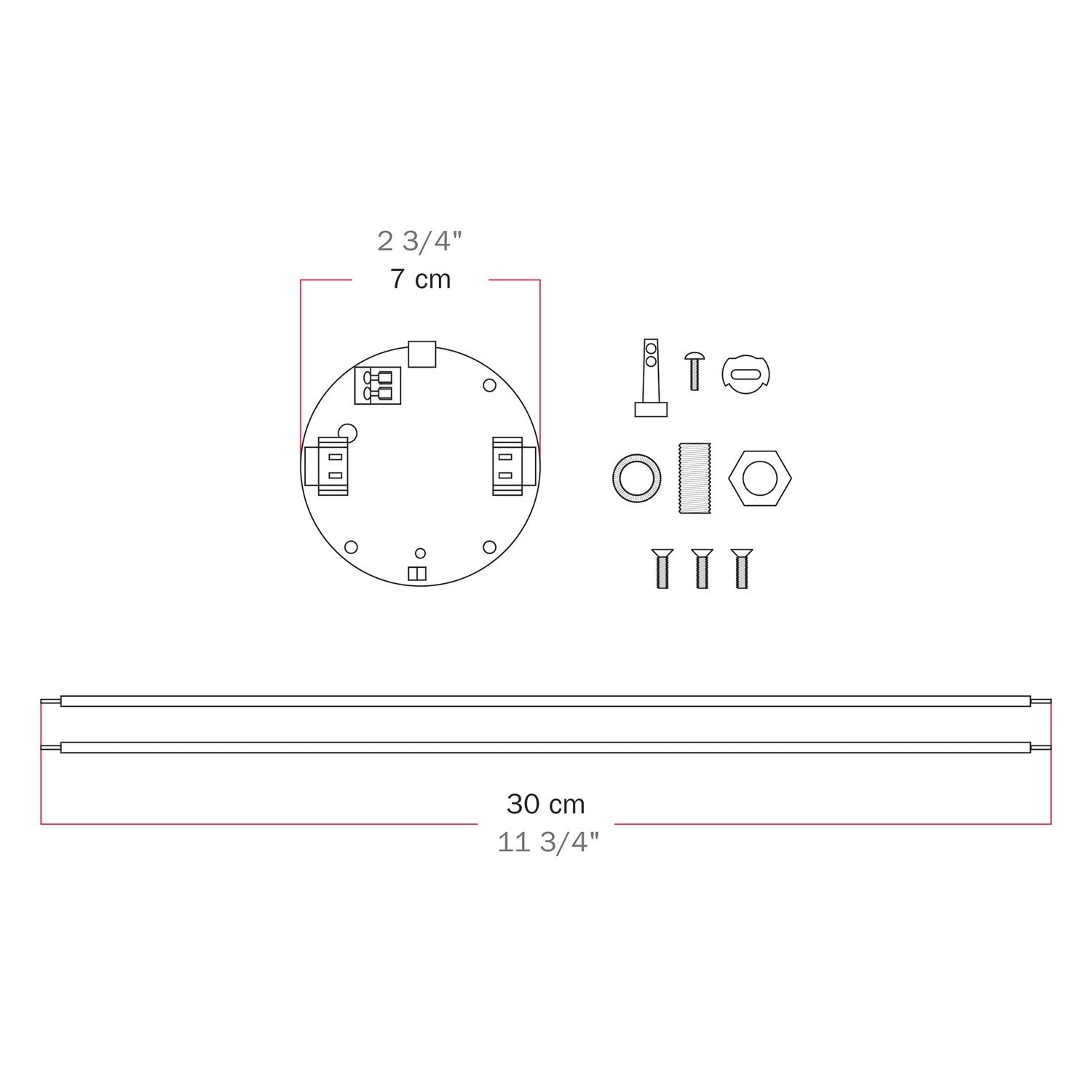

Kit includes:

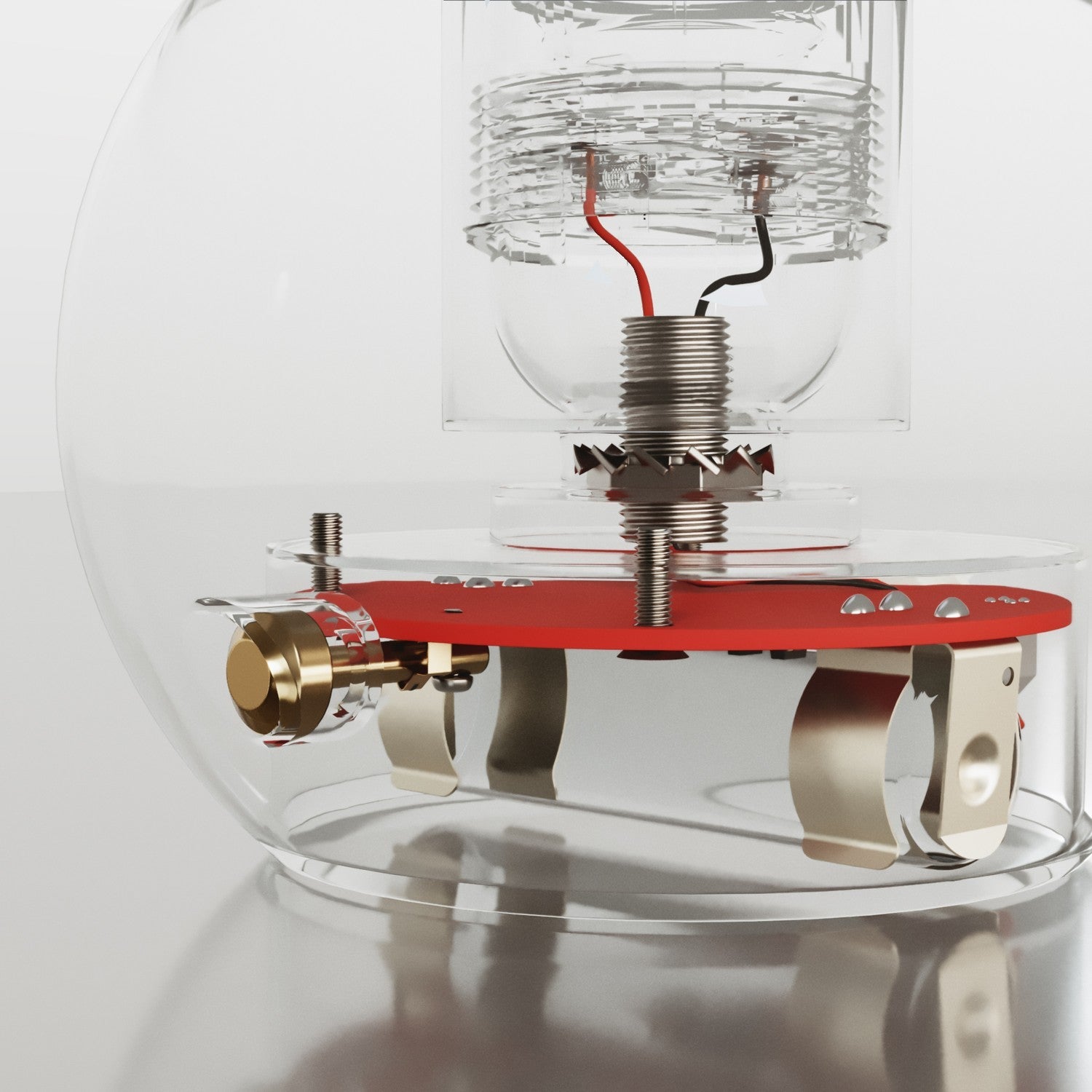

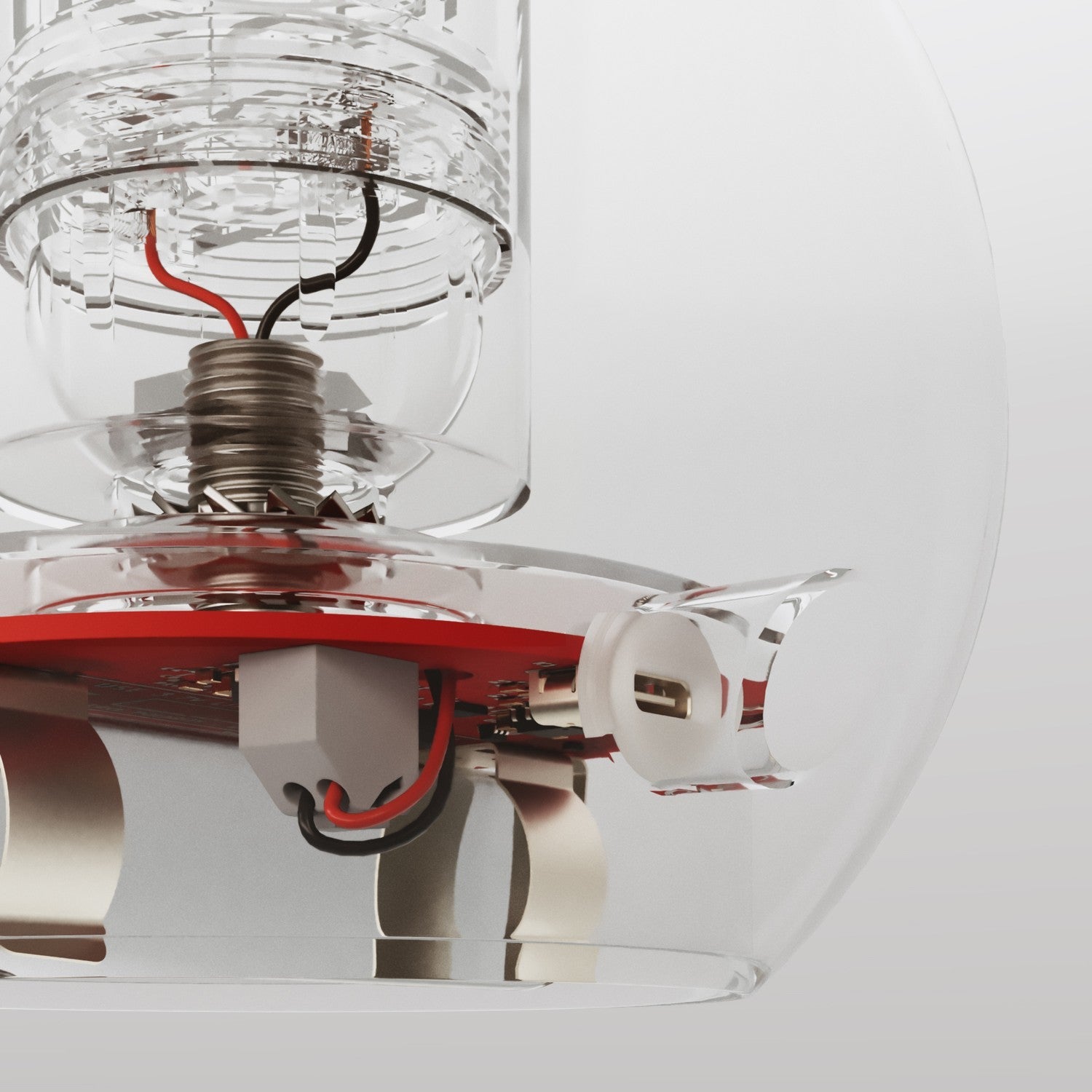

- Round electronic board Ø 70 mm with 5V input via USB C and 5V output to power the light bulb
- Brass button Ø 9.5 mm with fixing screw and double mounting position for bases with diameters from 86 mm to 96 mm
- Transparent silicone adapter Ø 12 mm
- Red single-core double-insulated wire, 1x0.75 mm, length 300 mm
- Black single-core double-insulated wire, 1x0.75 mm, length 300 mm
- Fixing screws M2.5x11 for mounting the board onto the base
- Metal fixing rod M10x1, length 25 mm, complete with nut and washer
The system works exclusively with 5V light bulbs.
Li-ion 18650 battery, charging accessories, lamp holder, and light bulb not included.
