Electronic kit for 5V USB-C battery-powered lamps with smooth E27 socket - Black
Electronic kit for 5V USB-C battery-powered lamps with smooth E27 socket - Black
Available in stock
Request a free personalized consultation.
Description
Description
5V USB C rechargeable battery electronic kit developed for designing custom portable lamps. A solution intended for those who create bespoke lamp bodies, functional prototypes or 3D-printed projects, with a modular and technical approach.
At the heart of the system is a circular electronic board with 5V USB C input and 5V output dedicated to powering the light source. The connection to the Socket is made via low-voltage cables, allowing the electronics to be separated from the Light bulb and the components to be arranged freely within the project.

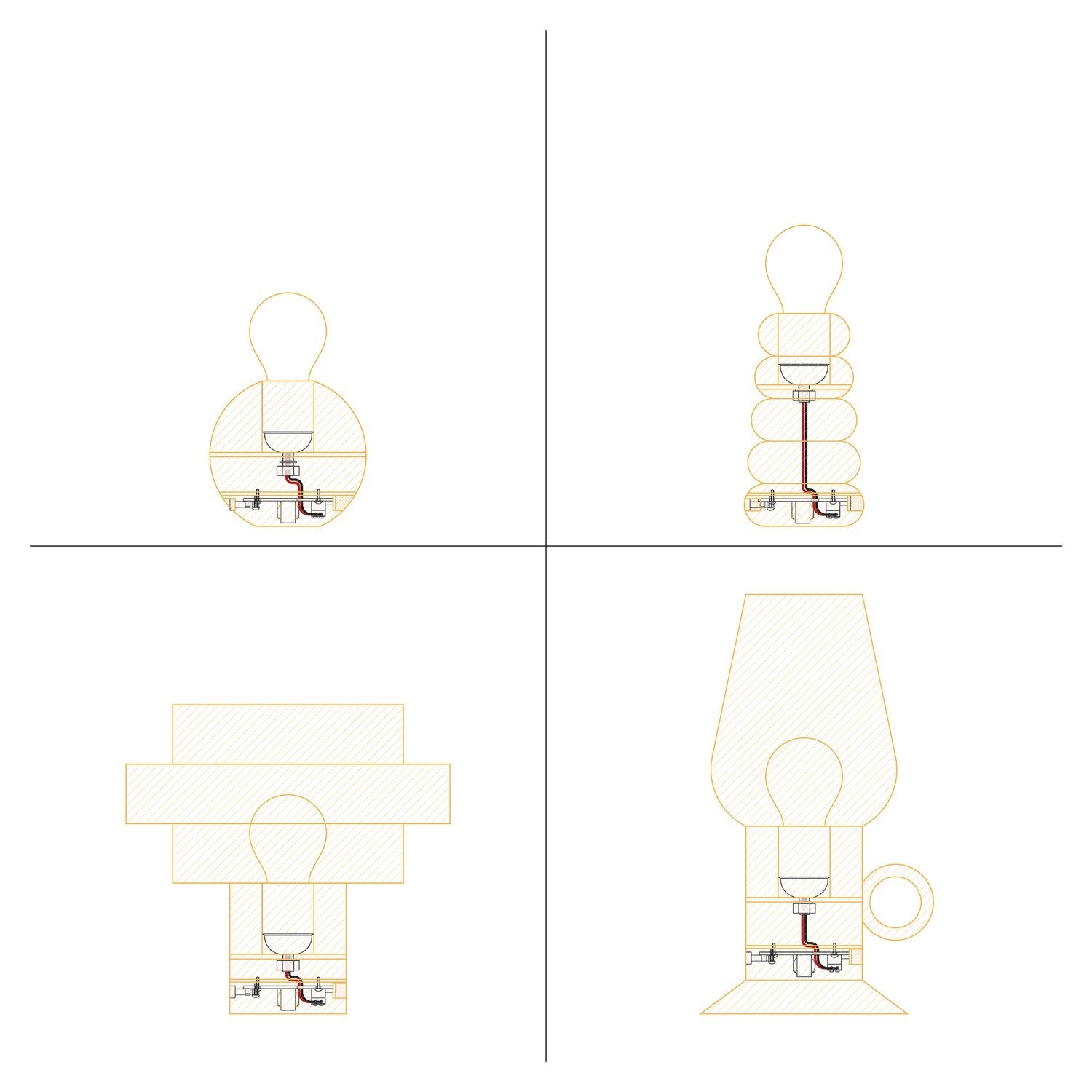

The kit includes a smooth black E27 Socket in thermoplastic, designed to be integrated or completely hidden inside the lamp body. This configuration makes it particularly suitable for artisanal creations, 3D-printed lamps or custom structures.
Light control is managed by a button with integrated dimmer, offering three brightness levels plus OFF function. The system is compatible with 5V E27 Light bulbs and makes it possible to create battery-powered lamps that are practical, repairable and designed for easy long-term maintenance.
Assembly is intuitive and requires no soldering or special tools. All connections are designed to be secured with a standard screwdriver, making the kit suitable both for prototyping and for small-scale production.
The system is compatible with Li-ion rechargeable batteries in 18650 format, which are easy to find and replace when needed. The battery is not included.

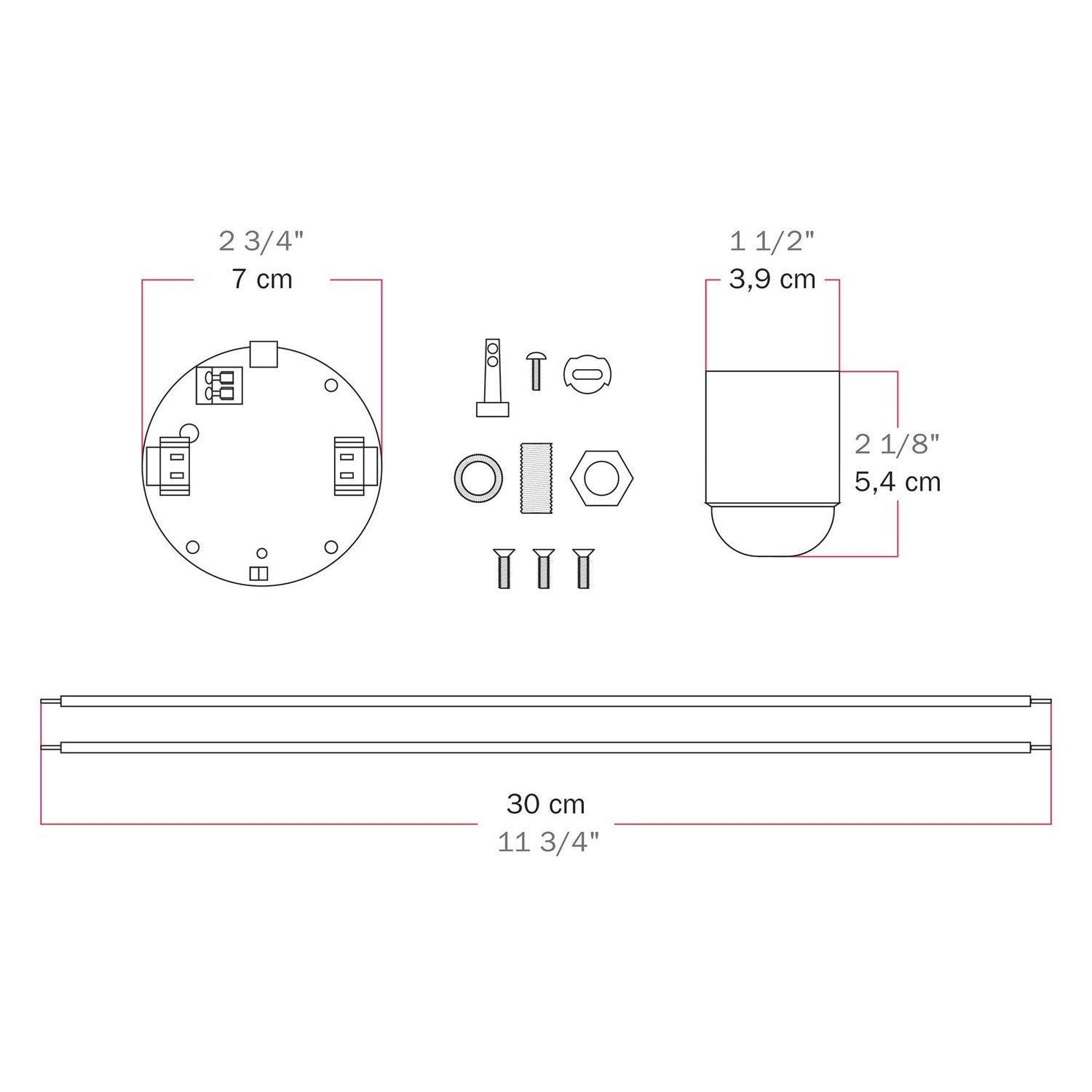

Technical specifications:

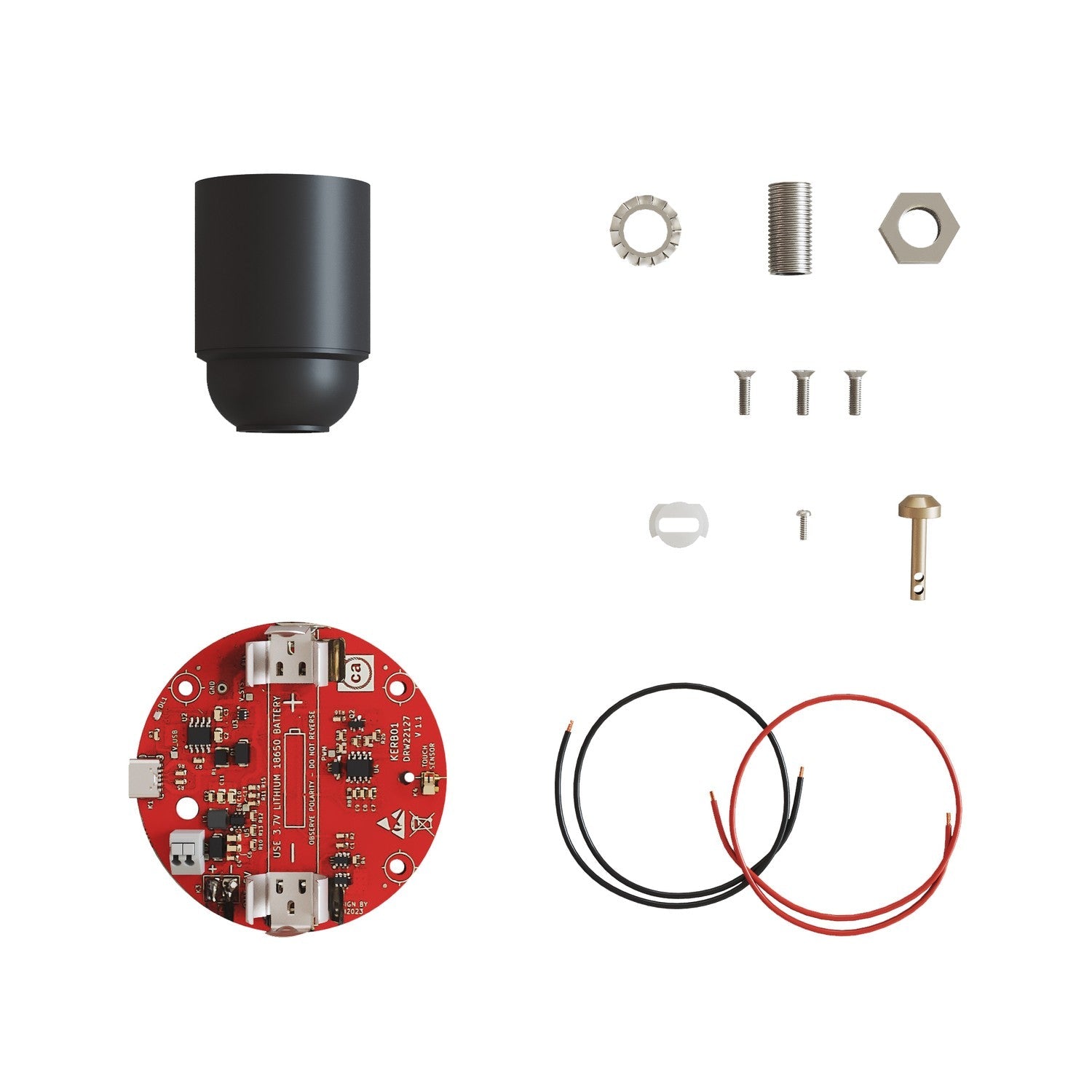

Kit composto da:
- Scheda elettronica rotonda Ø 70 mm con input 5V tramite USB C e output 5V per l’alimentazione della lampadina
- Tasto in ottone Ø 9,5 mm con vite di fissaggio e doppia posizione di montaggio per basi con diametro da 86 mm a 96 mm
- Transparent silicone adapter Ø 12 mm
- Cavo unipolare a doppio isolamento rosso sezione 1x0,75 mm lunghezza 300 mm
- Cavo unipolare a doppio isolamento nero sezione 1x0,75 mm lunghezza 300 mm
- Viti di fissaggio M2.5x11 per il montaggio della scheda sulla base
- Tige di fissaggio in metallo M10x1 lunghezza 25 mm completa di dado e rondella
- Smooth E27 Socket in thermoplastic
Il sistema funziona esclusivamente con lampadine a 5 Volt.
Batteria Li-ion formato 18650, accessori di ricarica e lampadina non inclusi.
Technical details
Technical details
| Attacco | E27 |
|---|---|
| Materiale | Thermoplastic |
