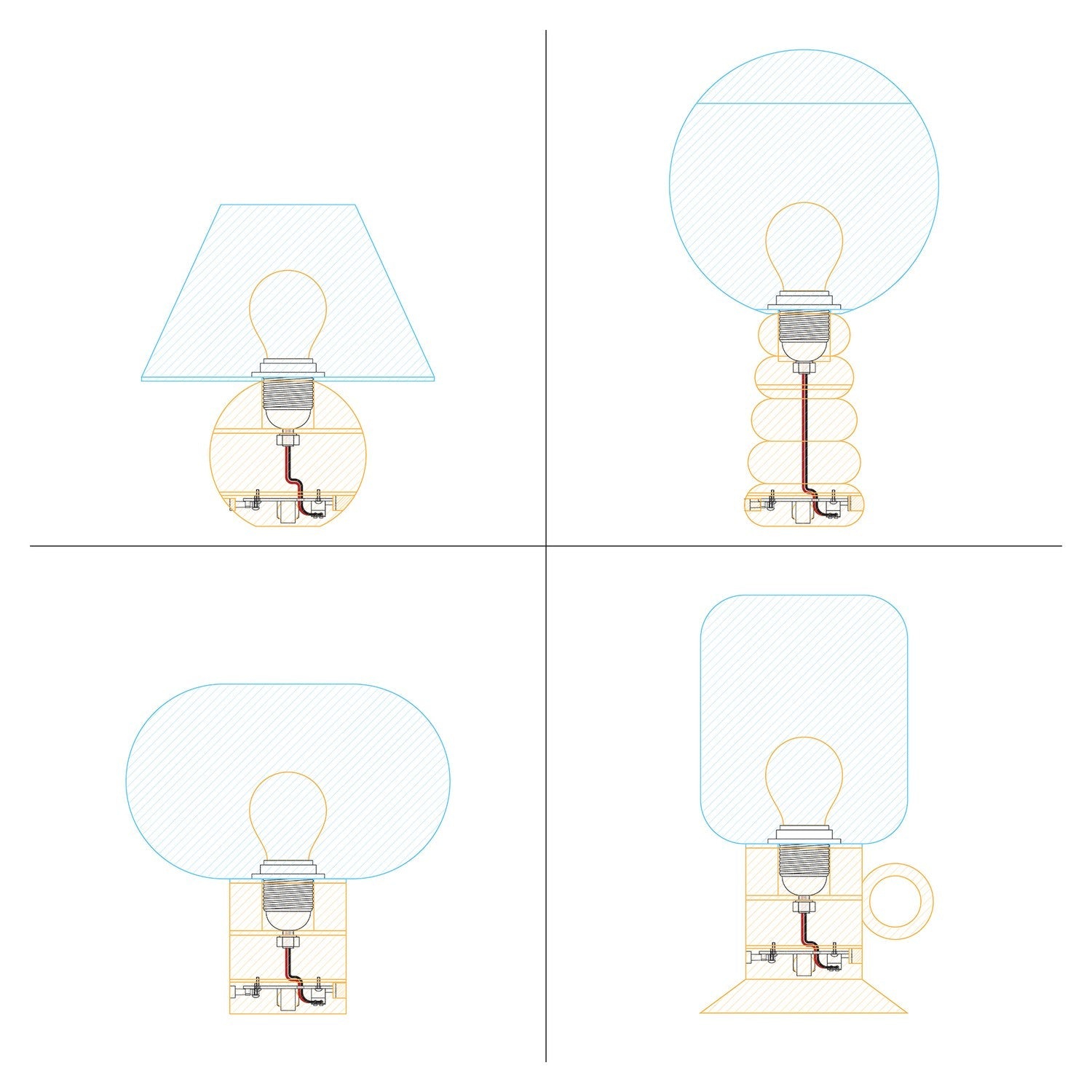

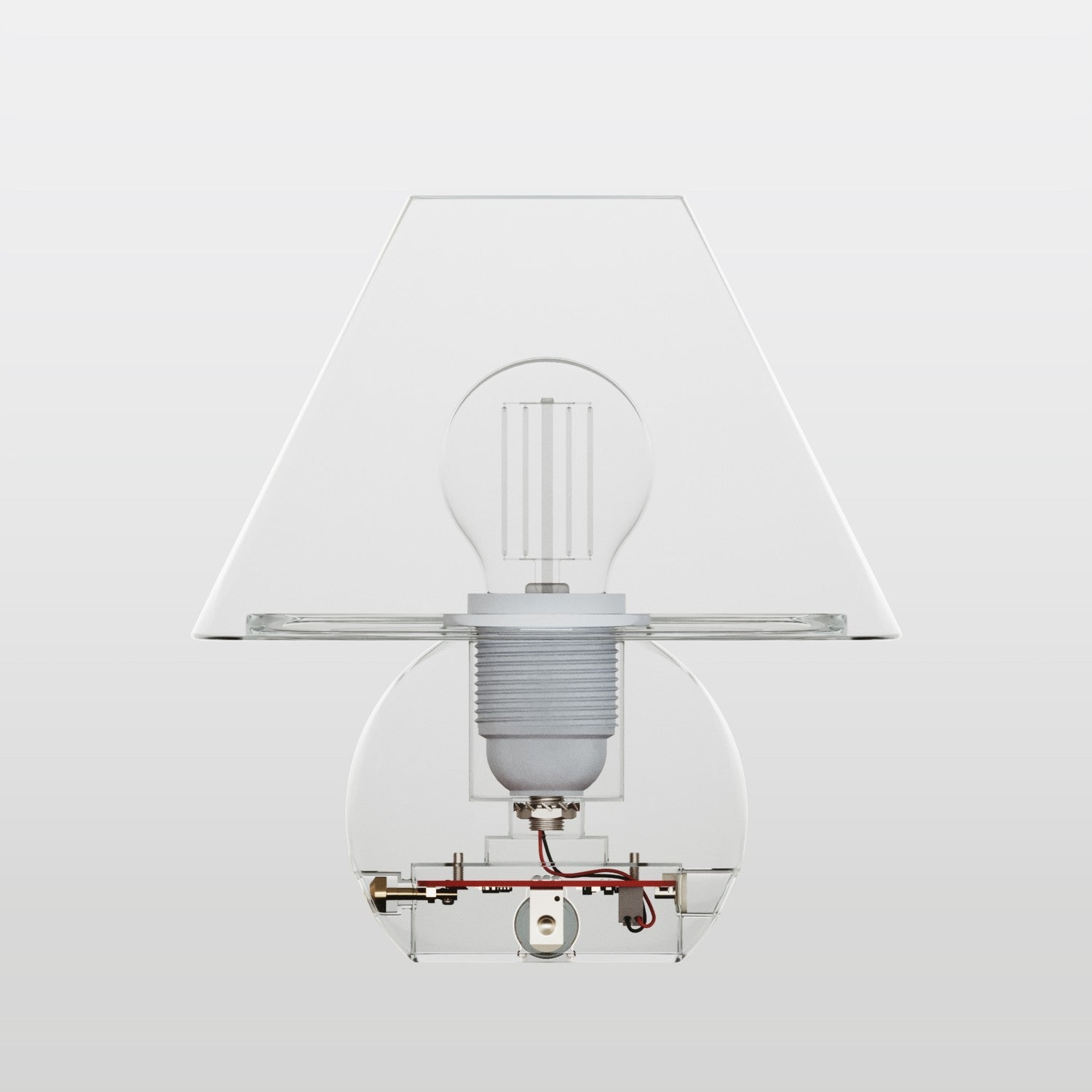

5V USB C rechargeable battery electronic kit designed for creating custom portable lamps. A technical solution aimed at makers, designers and lamp creators working on bespoke structures, functional prototypes or 3D-printed lamp bodies.

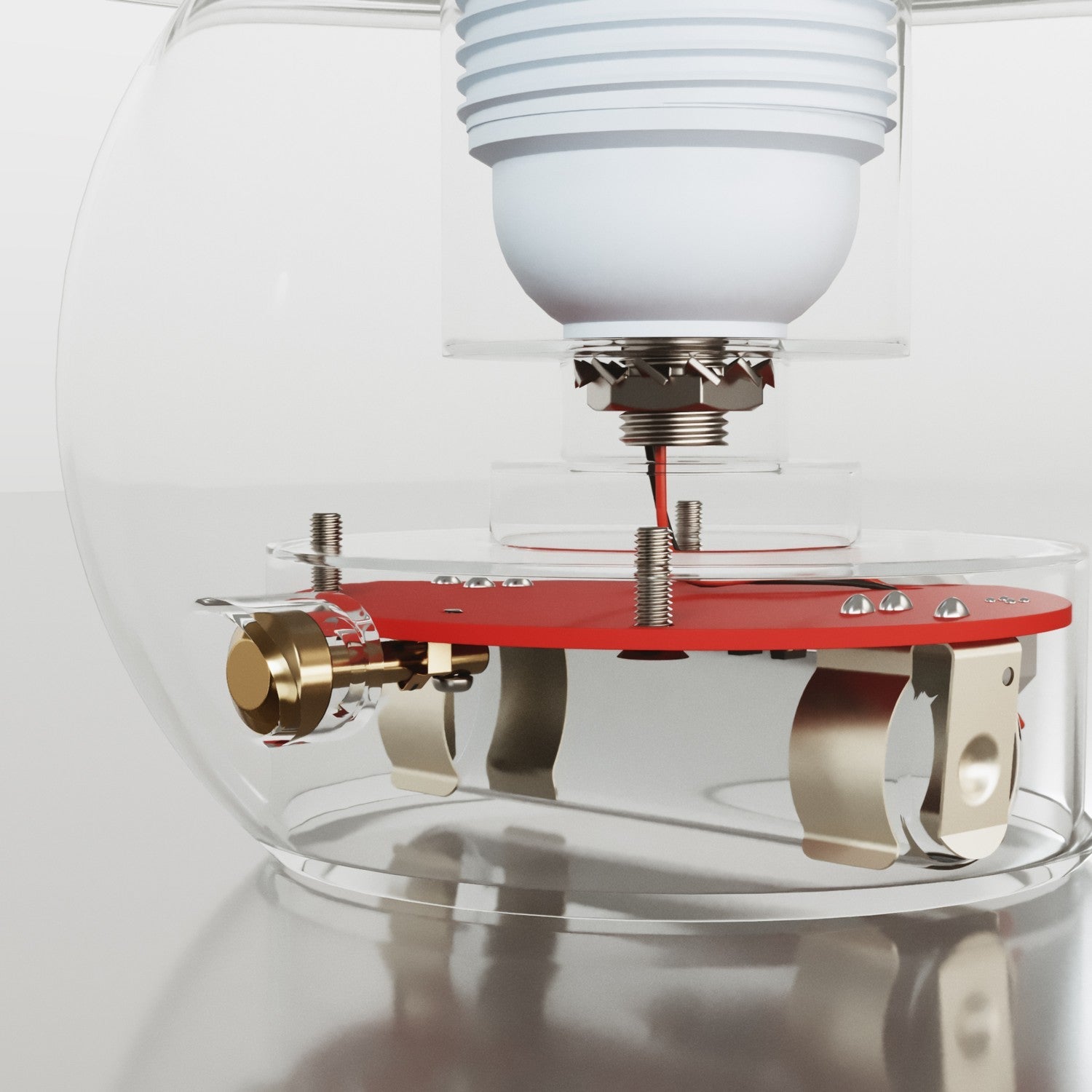

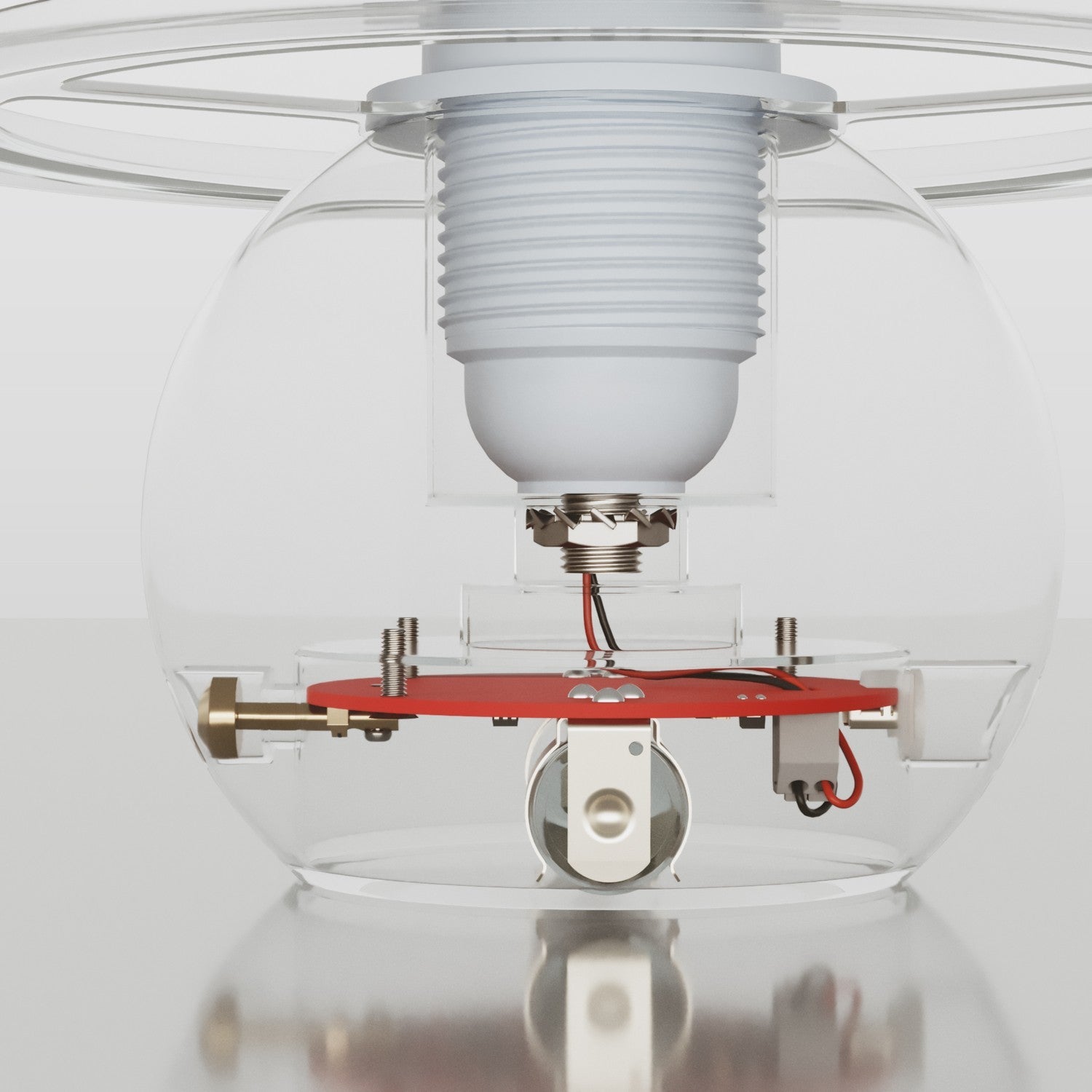

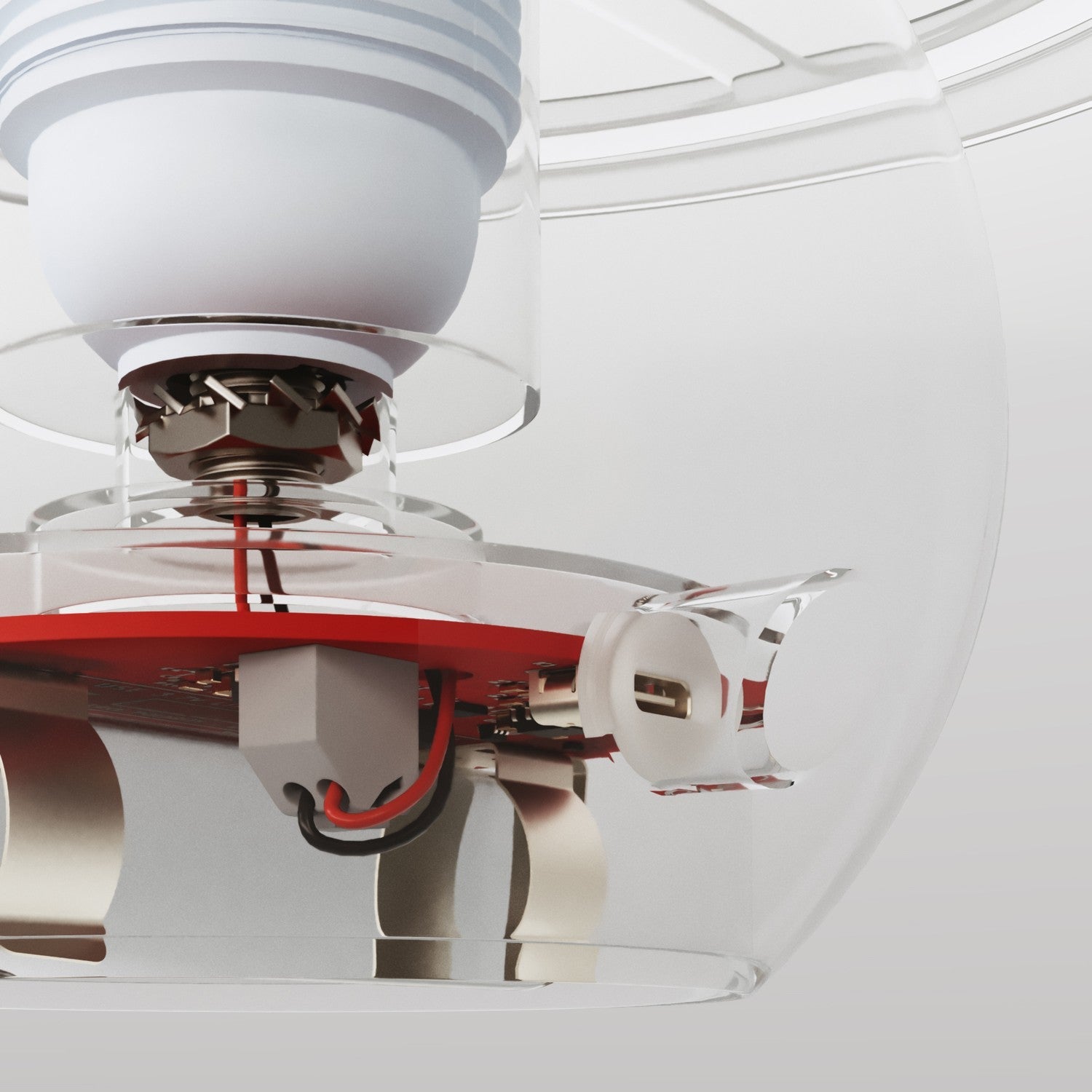

The system uses a round electronic board with 5V input via USB C and 5V output dedicated to powering the light source. The connection to the Socket is made via low-voltage cables, allowing the electronic part to be separated from the Light bulb and the components to be arranged freely within the project.
The kit includes a threaded E27 Socket in white thermoplastic, complete with ring, allowing the attachment of a compatible Lampshade.
Light emission is controlled via a push button with integrated dimmer, offering three intensity levels plus OFF function. The system is compatible with 5V E27 Light bulbs and is designed for the creation of battery-powered lamps that are repairable and easy to maintain.
Assembly requires no soldering or special tools. All connections are designed for quick mounting with a standard screwdriver, making the kit suitable both for the prototyping phase and for small-series production.
Il sistema è compatibile con batterie ricaricabili Li-ion formato 18650, facilmente reperibili e sostituibili quando necessario. La batteria non è inclusa.
Technical specifications:

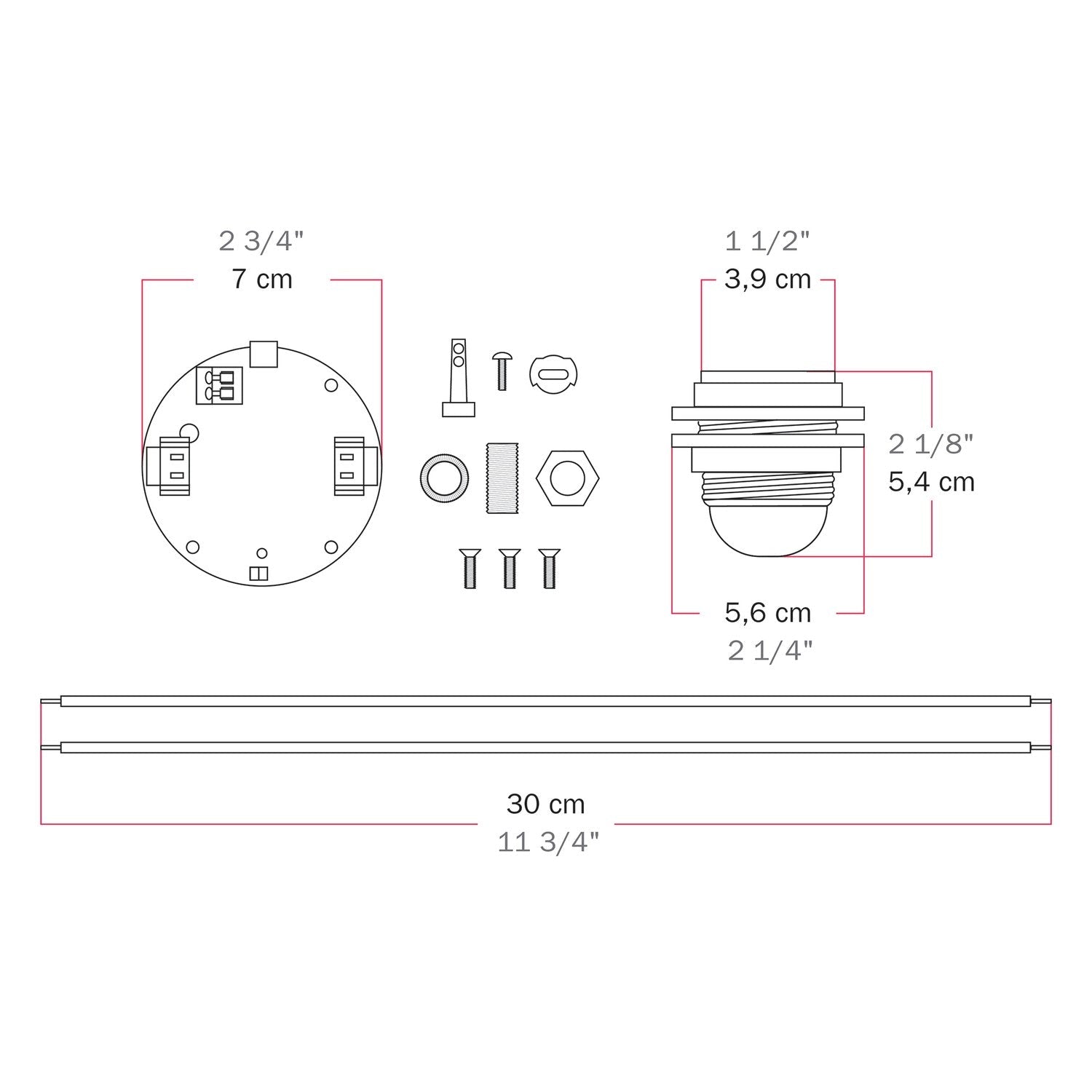

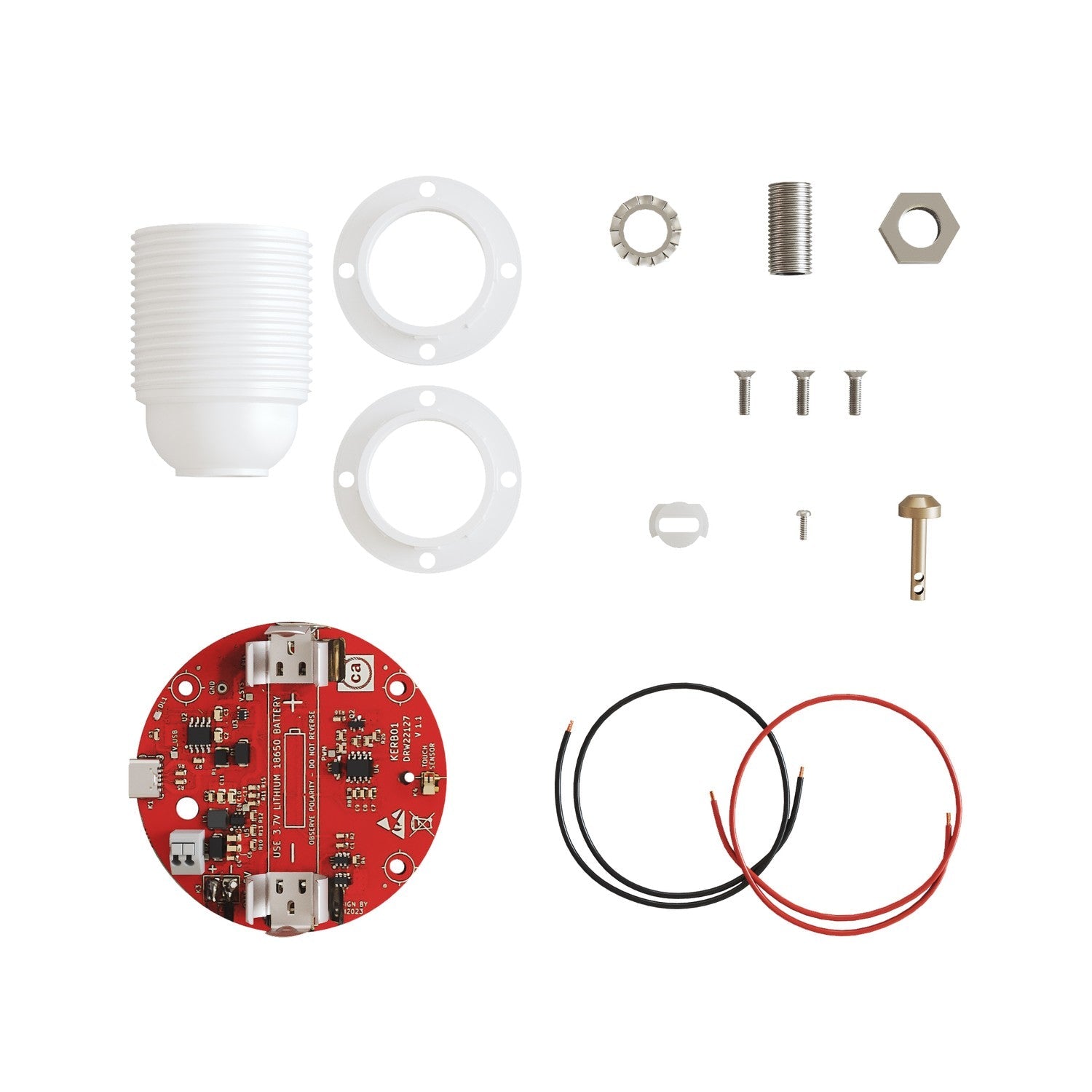

Kit composed of:
- Scheda elettronica rotonda Ø 70 mm con input 5V tramite USB C e output 5V per l’alimentazione della lampadina
- Tasto in ottone Ø 9,5 mm con vite di fissaggio e doppia posizione di montaggio per basi con diametro da 86 mm a 96 mm
- Adattatore in silicone trasparente Ø 12 mm
- Cavo unipolare a doppio isolamento rosso sezione 1x0,75 mm lunghezza 300 mm
- Cavo unipolare a doppio isolamento nero sezione 1x0,75 mm lunghezza 300 mm
- Viti di fissaggio M2.5x11 per il montaggio della scheda sulla base
- Tige di fissaggio in metallo M10x1 lunghezza 25 mm completa di dado e rondella
- Threaded E27 Socket in thermoplastic with double ring nut
The system works exclusively with 5 Volt Light bulbs.
Li-ion battery in 18650 format, charging accessories and light bulb not included.
Technical details
Technical details
| Attacco | E27 |
|---|---|
| Materiale | Thermoplastic |
