Electronic kit for 5V USB-C battery-powered lamps with E27 Socket - Satin copper
Electronic kit for 5V USB-C battery-powered lamps with E27 Socket - Satin copper
Available in stock
Request a free personalized consultation.
Description
Description
5V USB C rechargeable battery electronic kit designed for creating custom portable lamps. A technical solution intended for makers, designers and lamp creators working on bespoke structures, functional prototypes or 3D-printed lamp bodies.

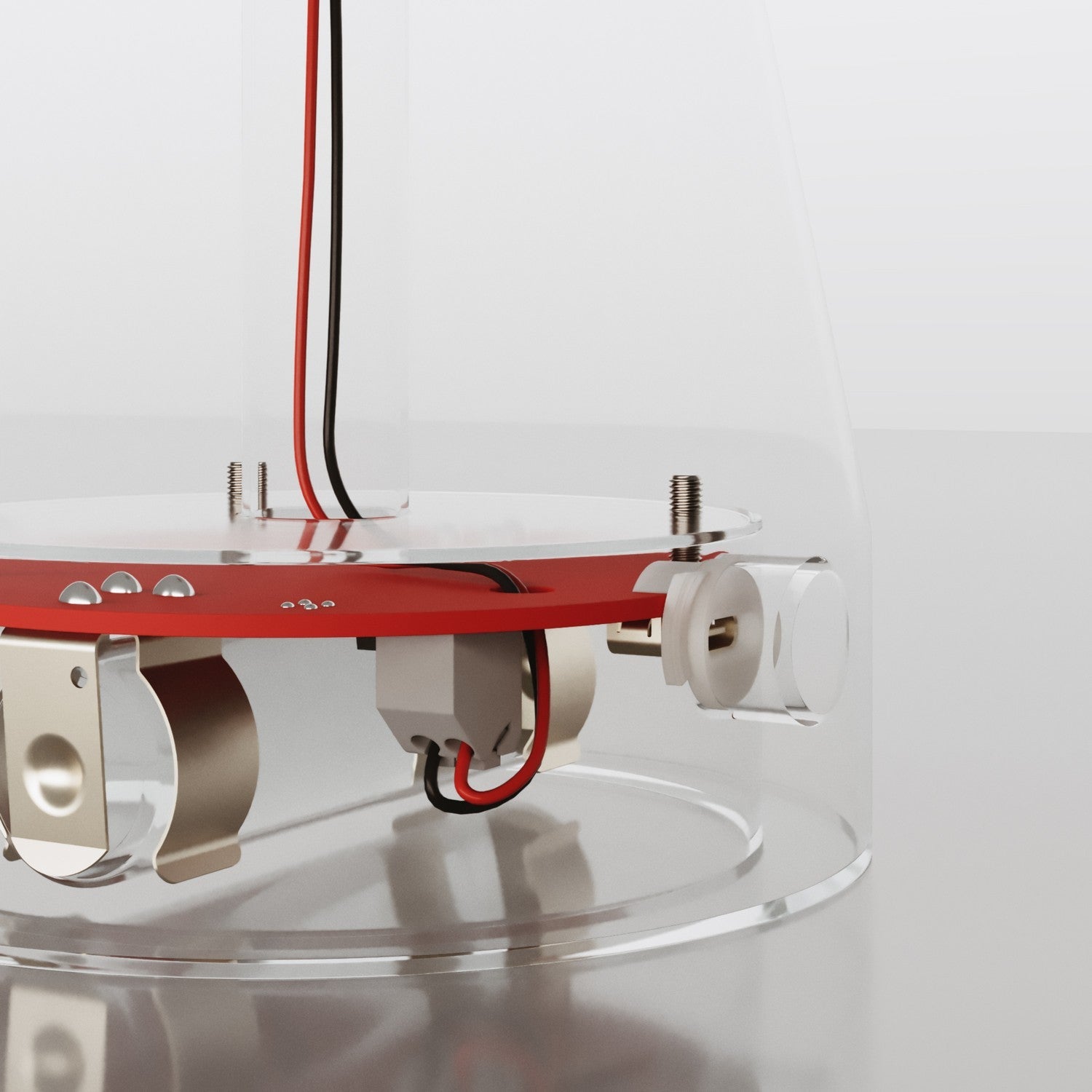

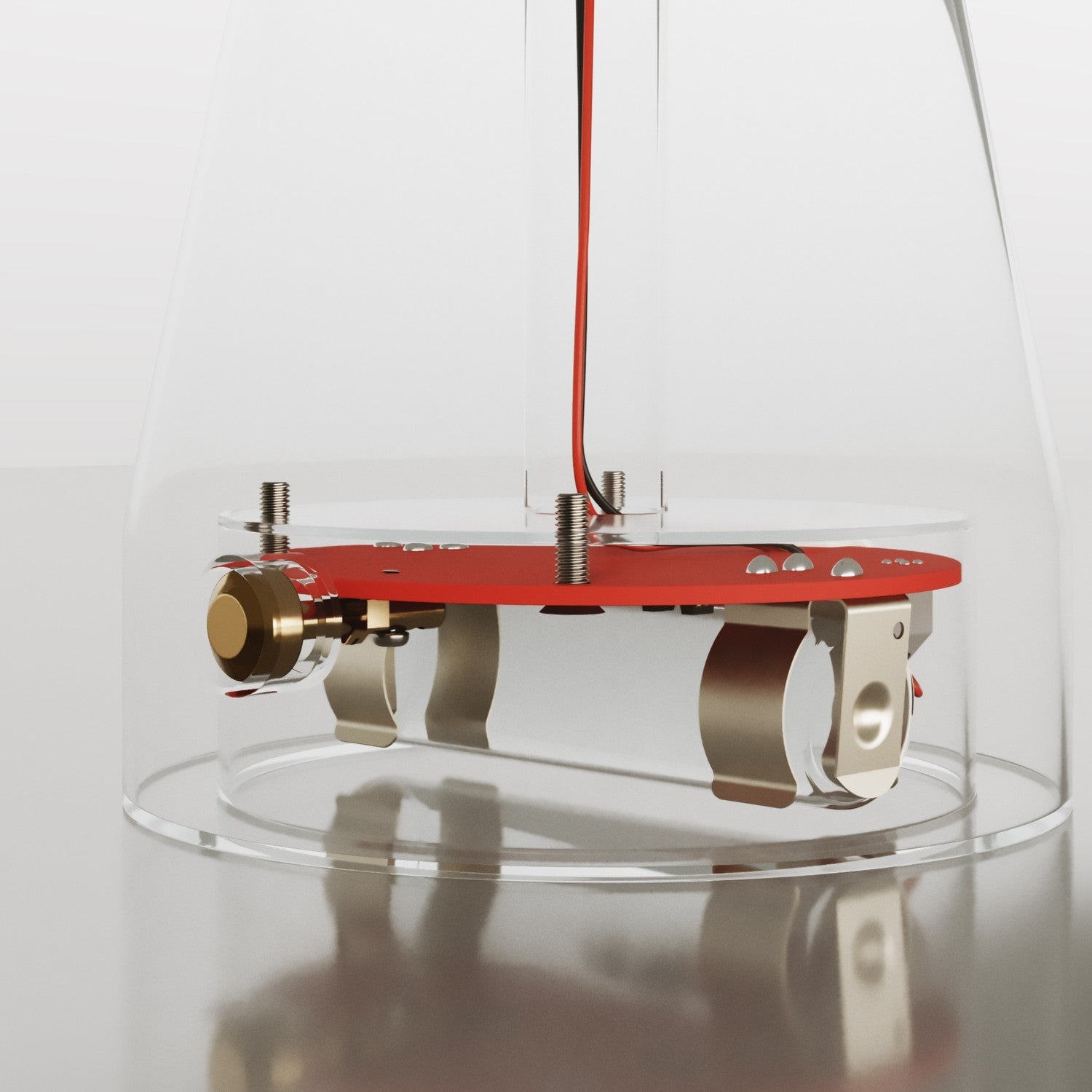

The system is based on a round electronic board with 5V input via USB C and 5V output for powering the light source. The board is connected to the Socket via low-voltage cables, allowing the electronic part to be separated from the Light bulb and enabling flexible organisation of the components within the project.

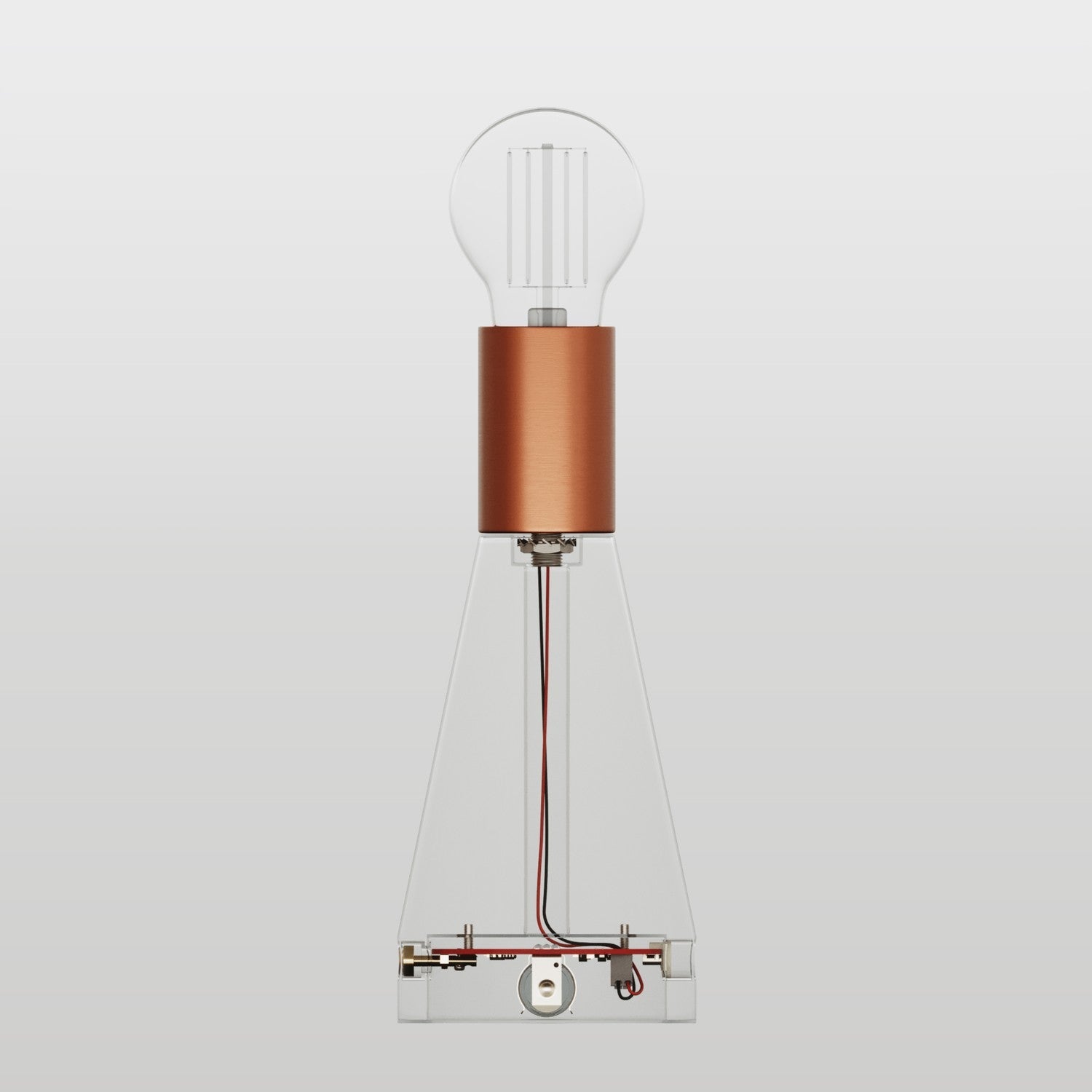

The kit includes a smooth E27 Socket with satin copper finish, designed to remain visible in the lamp design.
Light control is managed via a push button with integrated dimmer, with three intensity levels plus OFF function. The system is compatible with 5V E27 Light bulbs and is suitable for creating battery-powered lamps that are repairable and easy to maintain.
L’assemblaggio non richiede saldature né strumenti specifici. Tutte le connessioni sono progettate per un montaggio rapido con un normale cacciavite, rendendo il kit adatto sia alla fase di prototipazione sia alla produzione di piccole serie.
Il sistema è compatibile con batterie ricaricabili Li-ion formato 18650, facilmente reperibili e sostituibili quando necessario. La batteria non è inclusa.
Technical specifications:

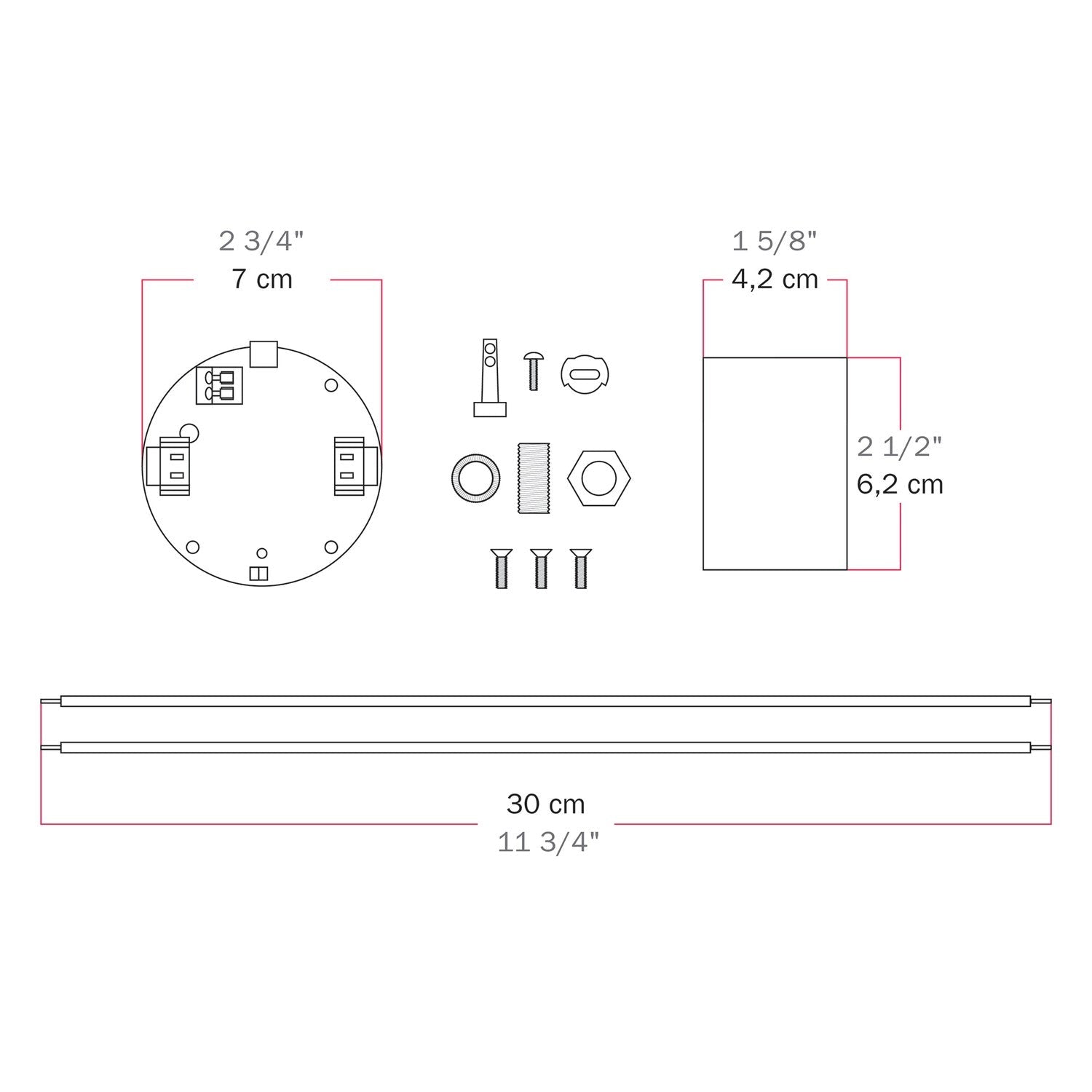

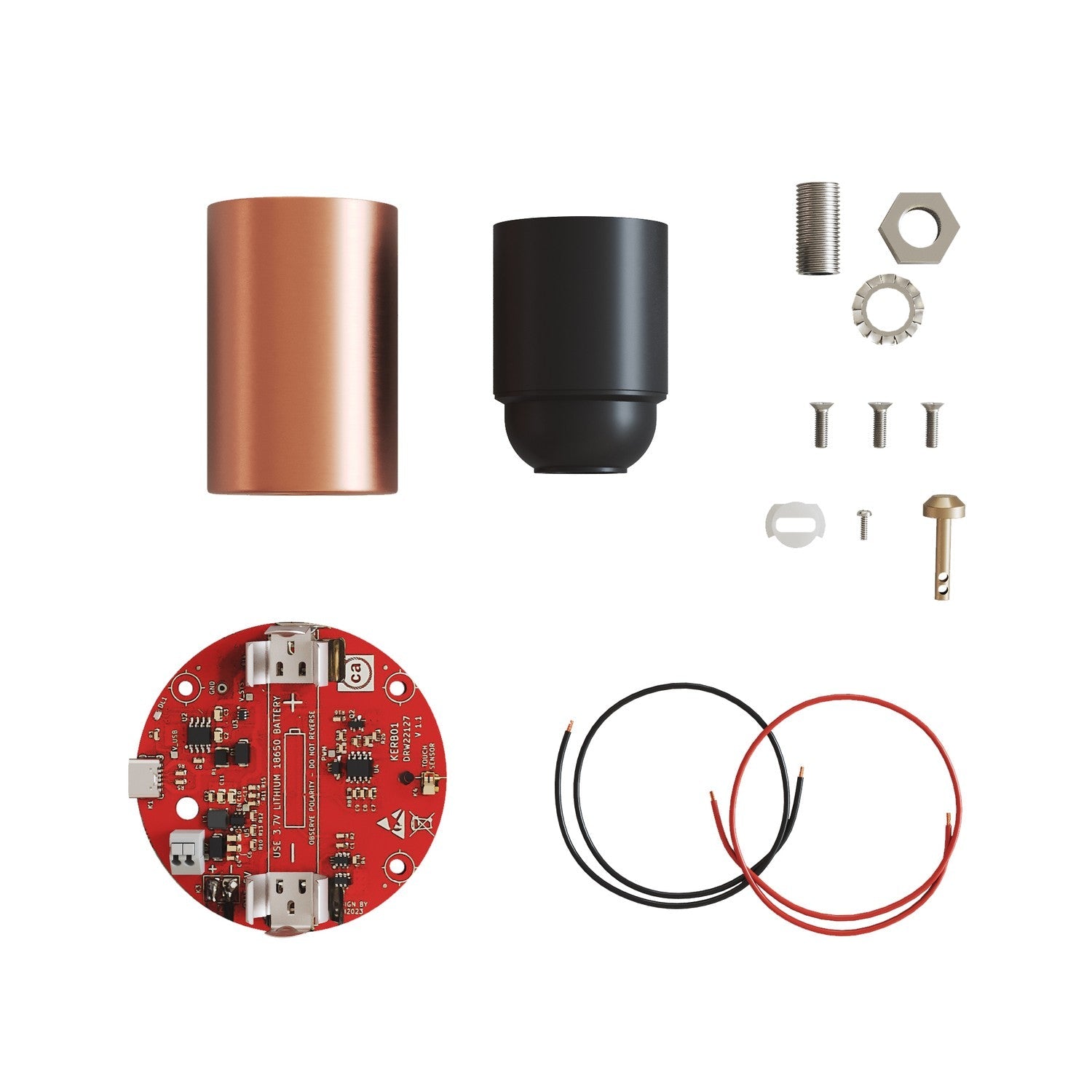

Kit composto da:
- Scheda elettronica rotonda Ø 70 mm con input 5V tramite USB C e output 5V per l’alimentazione della lampadina
- Tasto in ottone Ø 9,5 mm con vite di fissaggio e doppia posizione di montaggio per basi con diametro da 86 mm a 96 mm
- Adattatore in silicone trasparente Ø 12 mm
- Cavo unipolare a doppio isolamento rosso sezione 1x0,75 mm lunghezza 300 mm
- Cavo unipolare a doppio isolamento nero sezione 1x0,75 mm lunghezza 300 mm
- Viti di fissaggio M2.5x11 per il montaggio della scheda sulla base
- Tige di fissaggio in metallo M10x1 lunghezza 25 mm completa di dado e rondella
- Portalampada cilindrico E27 in metallo
Il sistema funziona esclusivamente con lampadine a 5 Volt.
Batteria Li-ion formato 18650, accessori di ricarica e lampadina non inclusi.
Technical details
Technical details
| Attacco | E27 |
|---|---|
| Materiale | Metal |
