Electronic kit for 5V USB-C battery-powered lamps with E27 threaded socket - Black
Electronic kit for 5V USB-C battery-powered lamps with E27 threaded socket - Black
Available in stock
Request a free personalized consultation.
Description
Description
5V USB C rechargeable battery electronic kit designed for creating custom portable lamps. A technical solution aimed at makers, designers and lamp creators working on bespoke structures, functional prototypes or 3D-printed lamp bodies.
The system uses a round electronic board with 5V input via USB C and 5V output dedicated to powering the light source. The connection to the Socket is made via low-voltage cables, allowing the electronic part to be separated from the Light bulb and the components to be arranged freely within the project.
The kit includes a black threaded E27 Socket in thermoplastic, complete with ring nut, allowing the attachment of a compatible Lampshade.
Light emission is controlled via a push button with integrated dimmer, offering three intensity levels plus OFF function. The system is compatible with 5V E27 Light bulbs and is designed for the creation of battery-powered lamps that are repairable and easy to maintain.
Assembly requires no soldering or special tools. All connections are designed for quick mounting with a standard screwdriver, making the kit suitable both for the prototyping phase and for small-series production.
The system is compatible with Li-ion rechargeable batteries in 18650 format, which are easy to find and replace when needed. The battery is not included.
Technical specifications:

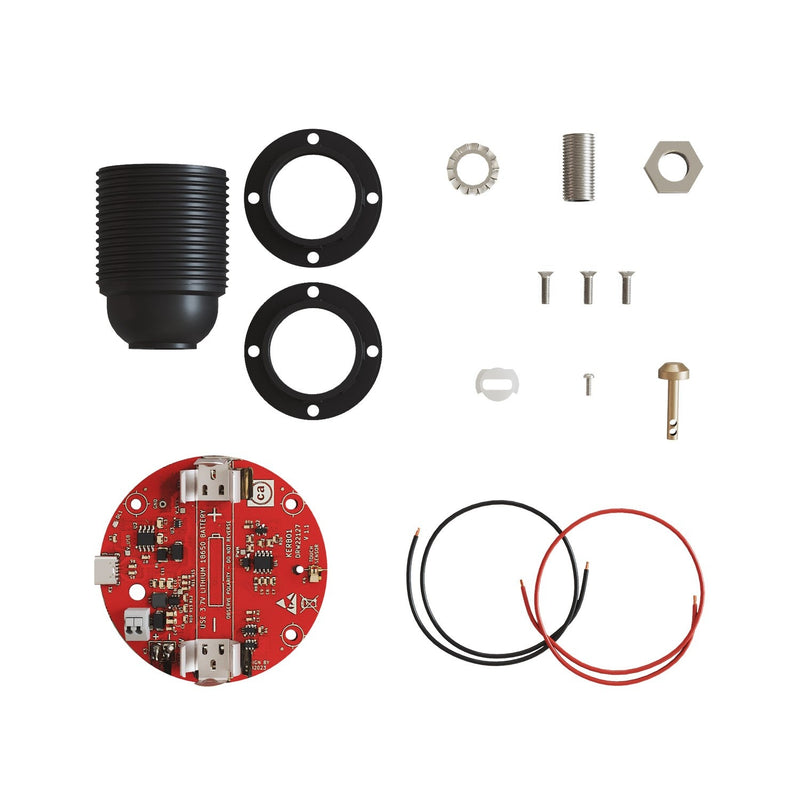

Kit composed of:
- Round electronic board Ø 70 mm with 5V input via USB C and 5V output for powering the light bulb
- Brass button Ø 9.5 mm with fixing screw and dual mounting position for bases with diameters from 86 mm to 96 mm
- Transparent silicone adapter Ø 12 mm
- Single-core double-insulated red Cord cross-section 1x0.75 mm length 300 mm
- Single-core double-insulated black Cord cross-section 1x0.75 mm length 300 mm
- M2.5x11 fixing screws for mounting the board onto the base
- Metal fixing rod M10x1 length 25 mm complete with nut and washer
- Threaded E27 Socket in thermoplastic with double ring nut
The system works exclusively with 5 Volt Light bulbs.
Li-ion battery in 18650 format, charging accessories and light bulb not included.
Technical details
Technical details
| Attacco | E27 |
|---|---|
| Materiale | Thermoplastic |
