Electronic kit for 5V USB-C battery-powered lamps with E27 socket - Satin titanium
Electronic kit for 5V USB-C battery-powered lamps with E27 socket - Satin titanium
Available in stock
Request a free personalized consultation.
Description
Description
5V USB C rechargeable battery electronic kit designed for creating custom portable lamps. A technical solution intended for makers, designers and lamp creators working on bespoke structures, functional prototypes or 3D-printed lamp bodies.
The system is based on a round electronic board with 5V input via USB C and 5V output for powering the light source. The board is connected to the Socket via low-voltage cables, allowing the electronic part to be separated from the Light bulb and enabling flexible management of component placement within the project.
The kit includes an E27 Socket with satin titanium finish, designed to remain visible and become an integral part of the lamp’s formal language. The metallic finish enhances the light socket as both a functional and aesthetic element of the design.
Light control is managed via a push button with integrated dimmer, with three intensity levels plus OFF function. The system is compatible with 5V E27 Light bulbs and is suitable for creating battery-powered lamps that are repairable and easy to maintain.
Assembly requires no soldering or special tools. The connections are designed for quick mounting with a standard screwdriver, making the kit suitable both for prototyping and for small-scale production.
The system is compatible with Li-ion rechargeable batteries in 18650 format, which are easy to find and replace when needed. The battery is not included.
Technical specifications:

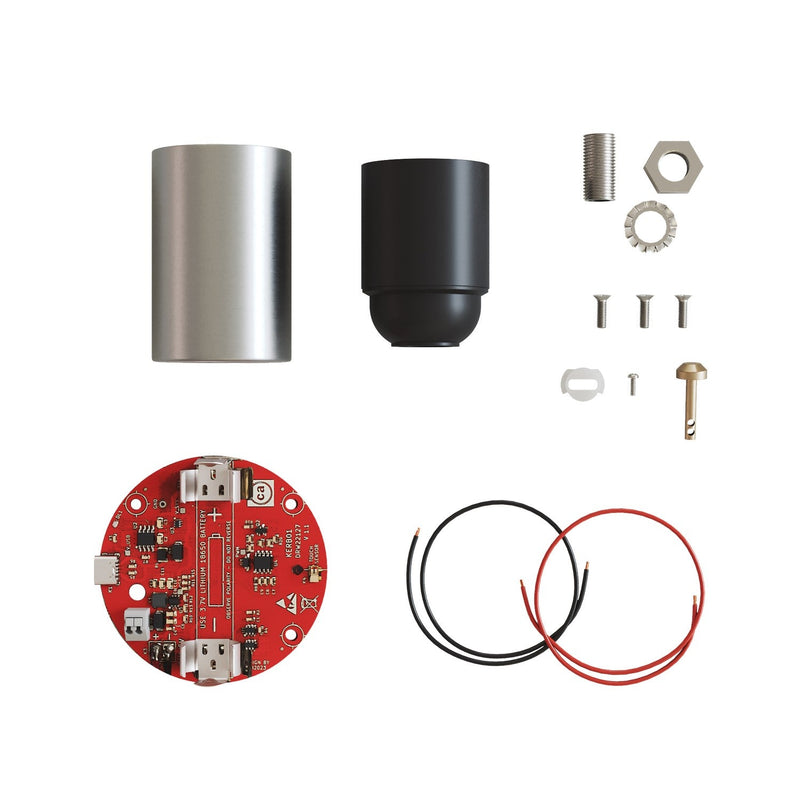

Kit composed of:
- Round electronic board Ø 70 mm with 5V input via USB C and 5V output for powering the light bulb
- Brass button Ø 9.5 mm with fixing screw and dual mounting position for bases with diameters from 86 mm to 96 mm
- Transparent silicone adapter Ø 12 mm
- Single-core double-insulated red Cord cross-section 1x0.75 mm length 300 mm
- Single-core double-insulated black Cord cross-section 1x0.75 mm length 300 mm
- M2.5x11 fixing screws for mounting the board onto the base
- Metal fixing rod M10x1 length 25 mm complete with nut and washer
- Cylindrical E27 Socket in metal
The system works exclusively with 5 Volt Light bulbs.
Li-ion battery in 18650 format, charging accessories and light bulb not included.
Technical details
Technical details
| Attacco | E27 |
|---|---|
| Materiale | Metal |
