Electronic kit for 5V USB-C battery-powered lamps with threaded E14 socket - Black
Electronic kit for 5V USB-C battery-powered lamps with threaded E14 socket - Black
Available in stock
Request a free personalized consultation.
Description
Description
5V USB C rechargeable battery electronic kit developed for designing custom portable lamps. A technical solution aimed at makers and designers who create bespoke lamps, prototypes or custom structures, including with 3D printing.
The system uses a circular electronic board with 5V USB C input and 5V output dedicated to powering the light source. The connection to the Socket via low-voltage cables allows the electronic component to be separated from the Light bulb and gives full freedom in arranging the components.
The kit includes a black threaded E14 Socket in thermoplastic, equipped with a ring nut for mounting a compatible Lampshade.
Brightness adjustment is managed via a push button with integrated dimmer, with three intensity levels plus OFF. The system is compatible with 5V E14 Light bulbs and is suitable for creating battery-powered lamps designed to be disassembled and maintained over time.
Assembly requires no soldering or special equipment. All connections are designed for quick installation with a standard screwdriver, making them suitable both for prototyping and for small production runs.
The system is compatible with Li-ion rechargeable batteries in 18650 format, which are easy to find and replace when needed. The battery is not included.
Technical specifications:

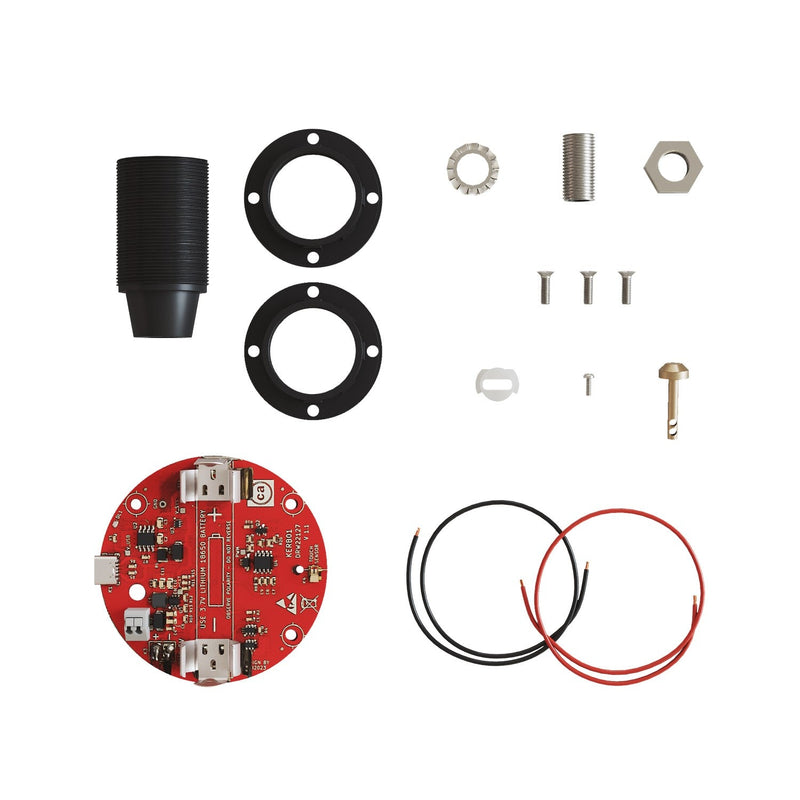

Kit composed of:
- Round electronic board Ø 70 mm with 5V input via USB C and 5V output for powering the light bulb
- Brass button Ø 9.5 mm with fixing screw and dual mounting position for bases with diameters from 86 mm to 96 mm
- Transparent silicone adapter Ø 12 mm
- Single-core double-insulated red Cord cross-section 1x0.75 mm length 300 mm
- Single-core double-insulated black Cord cross-section 1x0.75 mm length 300 mm
- M2.5x11 fixing screws for mounting the board onto the base
- Metal fixing rod M10x1 length 25 mm complete with nut and washer
- Threaded E14 Socket in thermoplastic with double ring nut
The system operates exclusively with 5-Volt light bulbs.
Li-ion 18650 battery, charging accessories and Light bulb not included.
Technical details
Technical details
| Attacco | E14 |
|---|---|
| Materiale | Thermoplastic |
