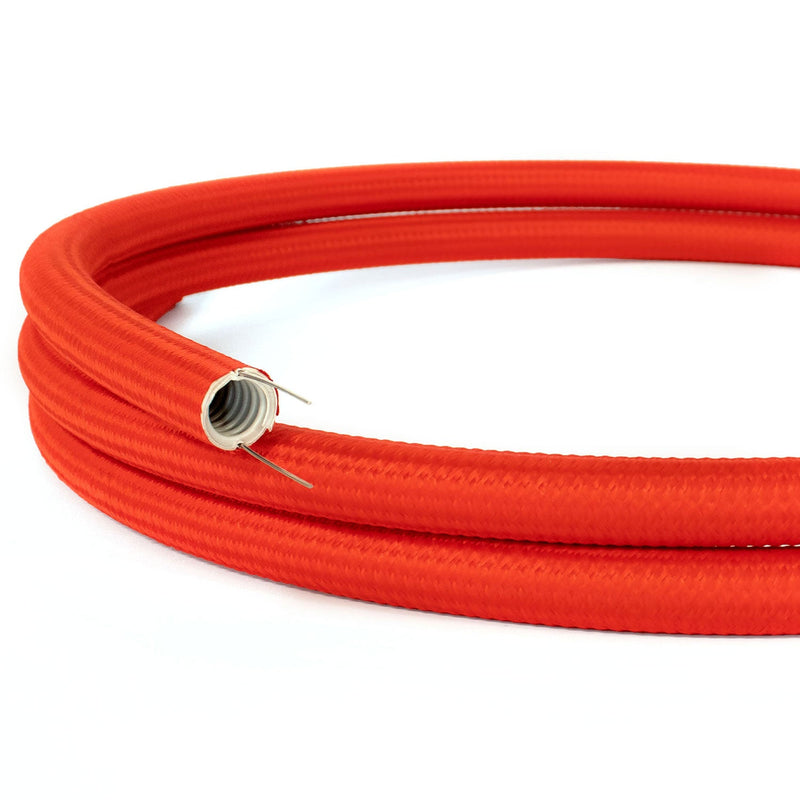

Creative-Tube flexible conduit, Red Rayon RM09 fabric covering, 20 mm diameter
Creative-Tube flexible conduit, Red Rayon RM09 fabric covering, 20 mm diameter
Available in stock
Request a free personalized consultation.
Description
Description
Tired of boring metal conduit? With our Creative-Tube fabric conduit you can add a whole new dimension of color to your lighting projects!
Our Creative-Tubes have small metal wires embedded along their entire length. This allows Creative-Tube to take on and hold any shape you give it. The only limit to the uses and applications of Creative-Tube is your imagination!
With the 20 mm Red rayon fabric-covered tube you can bring shapes and colors to your lighting ideas.
You can combine our 20 mm Creative-Tubes to connect our tube to any standard junction box and connect it to a switch to create a customized, colorful conduit lighting solution that runs on the outside of walls. You’ll no longer be limited in where you want to place a light with a wall switch. And no more worries about drilling holes to run wires inside your walls! Just bend Creative Tube to the desired shape and let it light up your home!
You can use Creative-Tubes on exterior walls. Their internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321 and is IMQ certified.
Creative-Tube is sold by the foot; multiple feet will be delivered in a single length up to a maximum of 164 feet.
Can’t find the Creative-Tube color you want? Contact us: we can make it for you!
Technical specifications:
Classification No: 3321
Crushing resistance: >750 N on 5 cm at 20°C
Shock resistance: (-15°C) after applying 2 kg hammer mass
Operating temperature: -5°C to +60°C
Resistance to flame propagation: self-extinguishing V0
Dielectric strength: <2000 V at 50 Hz
Insulation resistance: >100 megaohm
Diameter: 20 mm
Colour: Rayon Red RM09
According to the CEI 64-8 standard, to ensure cable removal, the maximum usable cross-section of cables inside the Creative-Tube is 10 mm for a Tube up to 10 metres long. For lengths up to 20 metres, the maximum thickness is 9 mm.
Due to the shape of Creative-Tube, once it’s in place you’ll need to cut off the metal filaments that protrude beyond the edge of the tube before installing the accessories or connecting it to the junction box.
Creative-Tube is sold by the foot.
Technical details
Technical details
| Stile | Round |
|---|---|
| Tessuto | Silk effect |
| Fantasia del cavo | Solid color |
